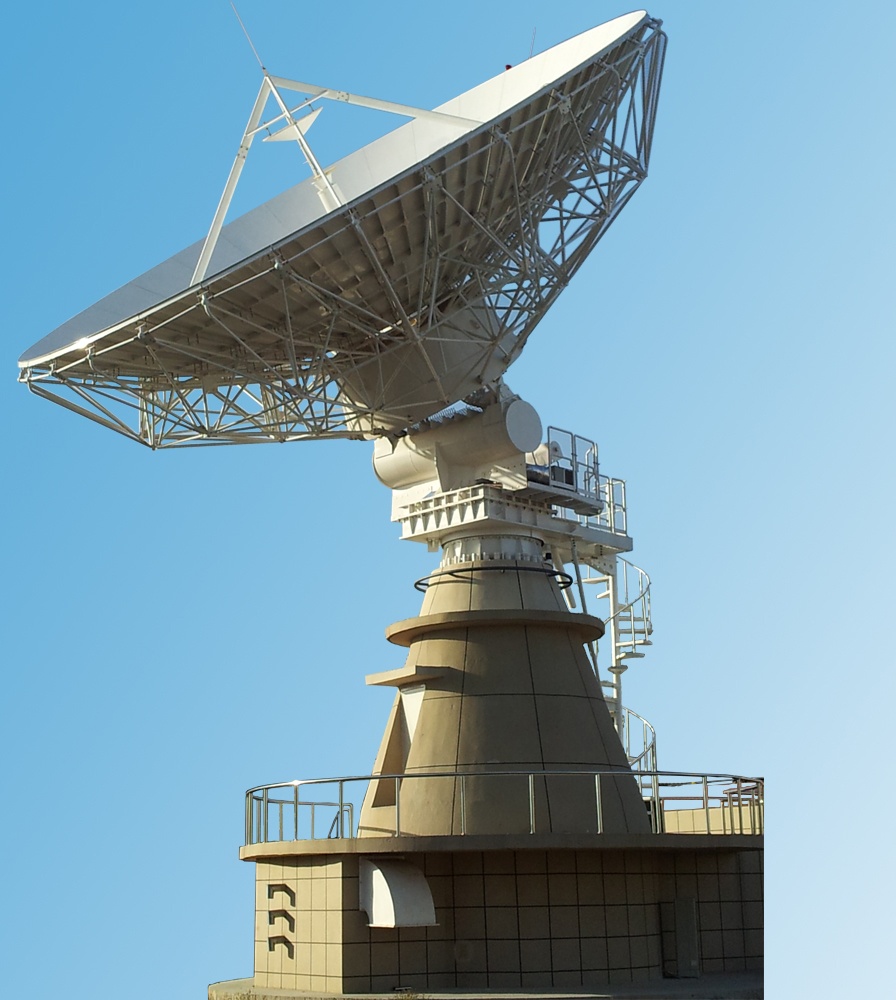

KVH 13米X波段卫星通信地球站天线
13米X通信卫星天线
13m X-Band ANTENNA

X  13M


13m X-Band ANTENNA (OEM)

概观

采用设计和制造,13M天线系统可应用于最新更新的INTELSAT(IESS)标准B地球站。

天线系统由双形状的卡塞格伦反射器,带波纹喇叭的频率重用馈电网络,方位角高度限制运动的基座支柱组成。反射器的备用结构,连接主反射器和底座的基座以及基座提供了正常操作所需的保证指向精度。

主反射器直径由80个精密拉伸成型铝板组成,铆接环和三个环中的径向。

13M天线系统具有高增益,低旁瓣,低交叉极化的特点,能够在发射和接收频带中进行频率重用,具有高分辨率角度位置显示的高驱动/控制精度。辐射方向图符合INTELSAT(IESS),FCC和CCIR对地静止卫星2度间隔位置的相关要求





R.F Specifications

GREGORAIN ANTENNA

With 4-PORT 2Tx/2Rx Circular Pol FEED

X-Band

Receive

Transmit

Frequency in GHz

7.25-7.75

7.9-8.4Ghz

Gain

57.9+

20lg[f(GHz)/7.5]

58.8 +

20lg[f(GHz)/8.25]

Antenna Noise Temp.



5°Elevation

74k with TRF



10°Elevation

65k with TRF



20°Elevation

58k with TRF



40°Elevation

45k with TRF



Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe

meet IESS(Intelsat) or CCIR 580 Recommendation

VSWR

1.25:1

Axial Ratio (CP only)

1.09:1

1.09:1

3dB Beamwidth

0.215Deg

0.196Deg

Polarization

RHCP/LHCP

LHCP/RHCP

Feed Insertion or Ohmic

Loss

0.70 dB

0.70dB

Power Handling

Capability

1kw cw

Port to Port Isolation



Tx to Rx

³70dB(with TRF)

Rx to Rx

³20dB

Tx to Tx

³20dB

Feed Interfaces

WR112

WR112

R.F Specifications

Dual Shaped Cassegrain

Antenna

With 4-PORT 2Tx/2Rx Linear POL Feed

Ku-Band

Receive

Transmit

Frequency in GHz*

10.95-12.75

13.75-14.5 Ghz

Gain

62.6+

20lg[f(GHz)/12.5]

63.6+

20lg[f(GHz)/14.25]

Antenna Noise Temp.



5°Elevation

87k with TRF



10°Elevation

73k with TRF



20°Elevation

65k with TRF



40°Elevation

50k with TRF



Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe

meet IESS(Intelsat) or CCIR 580-4 Recommendation

Cross Pol. Discrimination

35dB (On axis) 30dB (within 1 dB Beamwidth)

VSWR

1.30:1

1.30:1

3dB Beamwidth

0.13°

0.11°

Feed Insertion or Ohmic

Loss

0.50dB

0.60dB

Power Handling

Capability

1kw cw (2kw High power Option) per port

Port to Port Isolation



Tx to Rx

³85dB(with TRF)

Rx to Rx

³30dB

Tx to Tx

³30dB

Feed Interfaces

WR75

WR75


R.F Specifications

Dual Shaped Cassegrain Antenna

With 4-PORT 2Tx/2Rx Linear POL Feed

C-Band



Receive



Transmit



Frequency in GHz*

3.625-4.200

3.400-4.200

(optional

5.850-6.425

5.850-

6.650optional

Gain

53.1+

20lg[f(GHz)/4]

56.6+

20lg[f(GHz)/6]

Antenna Noise Temp

Standard C-Band

Extended C-Band optional



5°Elevation

48k with TRF

54k with TRF



10°Elevation

36k with TRF

46k with TRF



20°Elevation

29k with TRF

36k with TRF



40°Elevation

24k with TRF

30k with TRF



Sidelobe Pattern

First sidelobe level ≤-14dB Beyond first sidelobe meet IESS(Intelsat) or CCIR 580-4 Recommendation

Cross Pol. Discrimination

35dB (On axis) 30dB (within 1 dB Beamwidth)

VSWR

1.30:1(LP)

1.25:1(CP)

1.30:1(LP)

1.25:1 (CP)

Axial Ratio (CP only)

1.06:1

1.06:1

Feed Insertion or Ohmic Loss

0.30dB

0.30dB

Power Handling Capability

3kw cw per Tx port (5KW CW high power per port Optional)

Port to Port Isolation



Tx to Rx

³85dB(with TRF)

Rx to Rx

³30dB

Tx to Tx

³22dB

Feed Interfaces

CPR-229

CPR-137






Antenna Specifications

Mechanical Specifications

Azimuth Travel

180°(in two overlapped 100°deg sectors)

Travel Rate for Az and El

0.1°/second

Elevation Travel

0°to 90°Continuous

Elevation Travel Rate

0.1°/second *

Polarization Travel

±45°

Tracking travel rate for Az and El

0.012°/second

Reflector

Steel

Pedestal Structure

Steel

Finish

Aluminium panels with high-diffusive white paint, steel part with Hot-Zinc Spray

Antenna Drive Mode



Physical

Ambient Temperature

-40ºC to 60oC (survival) , -15ºC to 50oC (Operational)

Operational Wind

72km/h gusts to 97km/h

Survival Wind

200km/hm

Rain

up to 4 in/h(10cm/h), lasting 10 minutes

Relative Humidity

up to 100% with condensation

Solar Radiation

1000 kcal/M2/h

Radial Ice (Survival)

25mm on all surface or 13mm on all surface with 130km/h wind gusts

Shock and Vibration

As encountered during shipment by commercial air, sea or truck

Corrosive atmosphere

As encountered in coastal regions and/or heavily industrialized areas

Seismic(Survival)

0.3G’s horizontal 0.1G’s vertical
